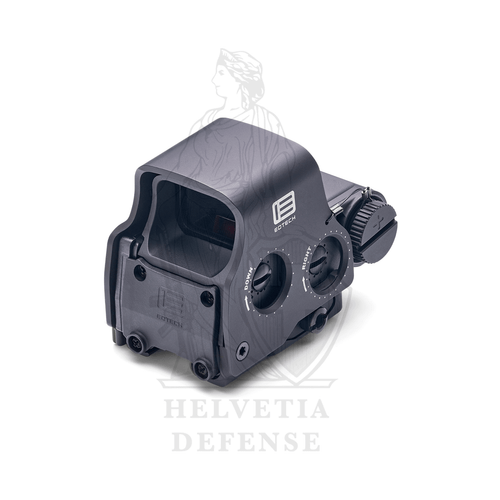

The EOTECH HWS EXPS3-DCR offers a specialized Danger Close Reticle (DCR) — a modified 68 MOA ring plus chevron and 1 MOA dot — in the compact EXPS3 form-factor. Night-vision compatible, quick-detach raised mounting base for lower-1/3 iron-sight co-witness, this holographic sight is built for fast engagements at close range and continued precision at longer distances.
Technical Specifications
– Reticle: Danger Close Reticle (DCR) – 68 MOA ring, 1 MOA centre dot and lower chevron aiming point.
– Magnification: 1× (holographic sight, no magnification).
– Brightness Settings: 20 daylight settings + 10 night-vision compatible settings (Gen I-III+).
– Power Source: 1 × CR123A lithium battery.
– Battery Life: Up to ~1,000 continuous hours at nominal setting.
– Dimensions (L × W × H): ~3.8″ × 2.3″ × 2.9″ (96.5 × 58.4 × 73.7 mm).
– Weight: Approx. 11.2 oz (317.5 g).
– Water Resistance: Submersible to 33 ft (10 m).
– Mount/Base: 7 mm raised quick-detach base for 1″ Weaver or MIL-STD-1913 rail; allows lower 1/3 iron-sight co-witness.
– Adjustment: Windage & elevation ~0.5 MOA per click.
– Operating Temp: -40 °F to +140 °F (-40 °C to +60 °C).
